Minifibre

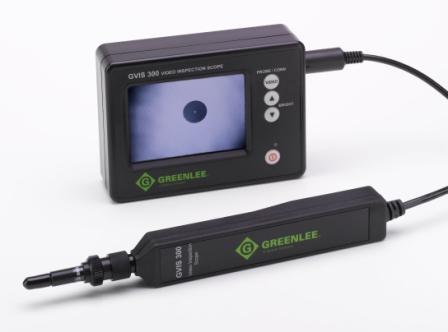

GVIS 300 MP Video Inspection System

Cat #:
GVIS 300 MP Video Inspection System

UPC #:
52056253

Specifications:

FOV (Field of View): FOV 630μm x 440μm
Resolution: ¾ micron
Light Source: Blue LED
Lighting Technique: Coaxial
Display screen size: 3.5 in diagonal
Battery Life: 8 to 10 hours continuous
Battery charge time: 3 hours
Size: Probe – 180mm x 25mm x 19mm, Monitor – 120mm x 89mm x 32mm
Weight - (monitor, probe & case): 0.54kg
Operating Temp.: 0º to 50 ºC
Storage Temp.: -40ºC to 70 ºC

Options:
52056253 GVIS 300 MP
- Video Inspection System (Monitor and Probe supplied with 601C Carry Case, SC Bulkhead and 2.5mm Universal Adaptor Tips, Battery Charger, Cleaning Pen and Square - requires additional Carry Case)



52056254 GVIS 300 MP-USB - Video Inspection System (Monitor - with USB option - and Probe with 601C Carry Case, SC Bulkhead and 2.5mm Universal Adaptor Tips, Battery Charger, Cleaning Pen and Square - requires additional Carry Case)



52056256 GVIS 300 P – Video Inspection System Probe (only) with 601C Carry Case and 2.5mm Universal Adaptor Tip



52056255 GVCM 410 - USB Video Capture Module



Description:

• Unique external focus mechanism eliminates need for “focus wheel”
• ¾ μm scratch resolution
• Thin (less than 1” dia.) ergonomic probe design
• Quick change adapter tips for all connector styles
• 3.5 inch LCD Display
• FOV 630μm X 440μm
• Advanced Li Ion Battery & smart technology AC charger system
• Rugged and compact size


Optional Accessories:

52063091 HARD CARRY CASE
52056257 GAC040 SC BULKHEAD
52056258 GAC041 SC/APC BULKHEAD
52056259 GAC042 FC BULKHEAD
52056261 GAC044 LC BULKHEAD
52056263 GAC046 ST BULKHEAD
52056264 GAC047 MTP BULKHEAD ADAPTOR
52056265 GAC048 1.25MM CONNECTOR UNIVERSAL
52056266 GAC049 2.5MM CONNECTOR UNIVERSAL
52060881 GAC050 MU BULKHEAD ADAPTOR
52060682 GAC 100 ODC PLUG TIP
52060683 GAC 101 ODC SOCKET TIP
52060684 GAC 104 60 DEGREE ANGLED FC
52060884 GAC107 LC BULKHEAD, 60 DEGREE ANGLE
52060685 GAC 109 SC BULKHEAD, 60 DEGREE ANGLE

Product Support Downloads

Greenlee Image Manager Software



Training Videos

Greenlee MTP Video

Greenlee MTP GVIS 300 Adapter
