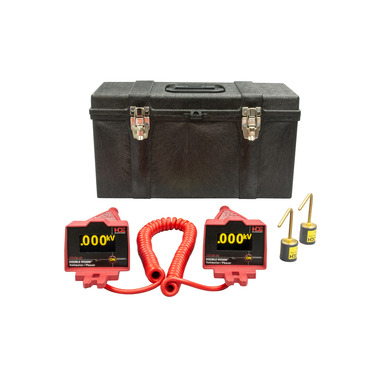

Double Vision® Dual Display Voltmeter/Phasing Set 5V-40kV, OH Kit, Base

Cat #: DDVM-40
UPC #: 0783310081111

Double Vision® Dual Display Voltmeter/Phasing Set 5V-40kV, OH Kit, Base

Cat #: DDVM-40
UPC #: 0783310081111
  • Measures voltage and performs phasing operations from 5V to 40kV
  • Two large displays are synchronized with the same voltage reading shown
  • Versatile for overhead and underground applications
  • Capacitive Test Point and Peak Hold modes
  • Tests for leakage current in cable fault test mode with available accessory
Show Less
Read More

Specifications

Sub Brand HDE
Type Voltmeter
Model DDVM-40
Voltage Rating 5V - 40kV line-to-ground
Accuracy Within 1% of reading +/- 3 counts
Display Two LED displays with 0.7" numeral height. Displays 3 digits
Operating Temperature -20°F to +120°F (-29°C to +49°C)
Dimensions 14" L x 4" H x 4 5/8" W (36 cm x 10 cm x 11 cm)
Frequency Rating 25 - 1000Hz AC/DC
Included DDVM-40, (2) 025-OLPS-5 Overhead Brass Hook Probes and CS-DDVM Case Case
*Greenlee® may make improvements and/or changes in the specifications of products at any time, in its sole discretion, without notice or obligation and further reserves the right to change or discontinue models.
