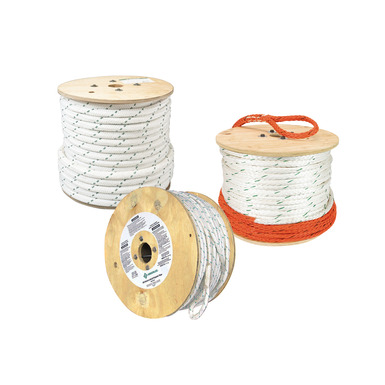

Greenlee’s High Performance and Double Braided cable pulling rope offer both strength and durability. Select a rope with a maximum rated capacity that meets or exceeds the tugger's maximum pulling force.
| Type | Double Braided or High Performance |
| Application | For use with G6, UT-8, 6001 (with Rope Ramp), UT-10 or GX10 Greenlee cable pullers |
| *Greenlee® may make improvements and/or changes in the specifications of products at any time, in its sole discretion, without notice or obligation and further reserves the right to change or discontinue models. |
| Catalog Number | Description | Avg Breaking Strength | Max Capacity | Weight | Rope Stand | |||
|---|---|---|---|---|---|---|---|---|
| lb. | kN. | lb. | kN. | lb. | kg | |||
| 450 | ROPE,POLY BRAID/BRAID(3/8x300) | 5,500 | 24.5 | 1,375 | 6.1 | 14.3 | 6.5 | 406 |
| 451 | ROPE,POLY BRAID/BRAID(3/8x600) | 5,500 | 24.5 | 1,375 | 6.1 | 31.0 | 14.3 | 644 |
| 452 | ROPE,POLY/BRAID (3/8 X 1200) | 5,500 | 24.5 | 1,375 | 6.1 | 60.0 | 27.2 | 644 |
| 455 | ROPE,POLY BRAID/BRAID(1/2x300) | 9,800 | 43.6 | 2,450 | 10.9 | 34.0 | 15.4 | 644 |
| 456 | ROPE, POLY/BRAID (1/2 X 600) | 9,800 | 43.6 | 2,450 | 10.9 | 75.0 | 34.0 | 644 |
| 35283G | ROPE-9/16 X 300' NYLON/POLY | 16,000 | 71.1 | 4,000 | 17.8 | 28.0 | 12.7 | 644 |
| 35284 | ROPE,NYLON/POLY (9/16 X 600') | 16,000 | 71.1 | 4,000 | 17.8 | 63.0 | 28.6 | 644 |
| 35285G | ROPE, 9/16 x 1200' NYLON/POLY | 16,000 | 71.1 | 4,000 | 17.8 | 130.0 | 59.0 | RXM |
| 35098 | ROPE-NYLON/POLYESTER 3/4"X300' | 26,000 | 115.6 | 6,500 | 28.9 | 58.0 | 26.3 | 644 |
| 35100 | ROPE-NYLON/POLYESTER 3/4"X600' | 26,000 | 115.6 | 6,500 | 28.9 | 113.0 | 51.3 | 654 |
| 35101 | ROPE-NYLON/POLYESTER 3/4"X1200 | 26,000 | 115.6 | 6,500 | 28.9 | 230.0 | 104.3 | RXM |
| 34136G | ROPE-7/8"X 300'NYSTRON | 32,000 | 142.3 | 8,000 | 35.6 | 90.0 | 40.8 | 654 |
| 34137 | ROPE-NYSTRON 7/8" X 600' | 32,000 | 142.3 | 8,000 | 35.6 | 178.0 | 80.7 | 654 |
| 34138 | ROPE-7/8"X1200'NYSTRON | 32,000 | 142.3 | 8,000 | 35.6 | 359.0 | 163.3 | RXM |
| HPR600 | ROPE, HIGH PERFORMANCE, 600FT | 40,000 | 177.9 | 10,000 | 44.5 | 60.0 | 27.2 | RXM |
| HPR1200 | ROPE, HIGH PERFORMANCE, 1200FT | 40,000 | 177.9 | 10,000 | 44.5 | 120.0 | 54.4 | RXM |
