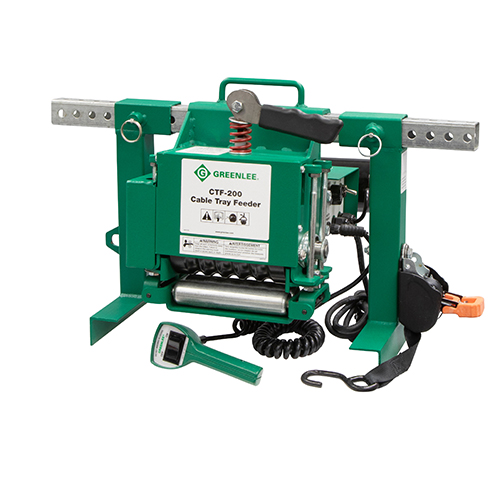

Cable Tray Feeder

Cat #: CTF-200
UPC #: 783310036449

Cable Tray Feeder

Cat #: CTF-200
UPC #: 783310036449
  • Feeds cable aiding up to 200 lbs (90.7 kg) of force
  • Force limiter preset to automatically stall on cable to prevent damage to the wire's insulation
  • Retained locking pins allow for quick adjustment of legs and feeder along mounting system while utilizing no loose pieces
  • Adjustable legs to fit onto tray width sizes of 18"" (457.2 mm) to 36"" (914.4 mm)
  • Over-Tray mounting systems allows cable to be placed in tray without taking space up
  • Safely control the CTF-200 up to 8' (2.4 m) away with a pendant
  • Specifically designed drive roller to safely and evenly grab cable
  • Quick release system utilizes 360° swivel and no loose pieces to easily remove cable
  • Cam lever system offers a quick clamping mechanism once pulling grip passes through
  • Designed and assembled in USA
Show Less
Read More
Request a Demo
Register Your Product
Request Info
Where to Buy

Specifications

Application Used to assist feeding cables along non basket-style cable trays. Designed to aid loads right before 90° bends, vertical rises and drops, and on straight runs.
Cable Capacity Up to 2'' (50.8 mm) in outer diameter
Height 14-1/4'' (362 mm)
Length 42-3/4'' (1085.9 mm)
Overall Height 14-1/4'' (362 mm)
Overall Length 42-3/4'' (1085.9 mm)
Pulling Force 200 lb (90 kg)
Roller Opening Size 0''- 2'' (0 mm - 50.8 mm)
Weight Feeder: 57 lbs (25.9 kg)
Weight Mounting System: 12 lbs (5.4 kg)
Width 4-1/4'' (108 mm)
*Greenlee® may make improvements and/or changes in the specifications of products at any time, in its sole discretion, without notice or obligation and further reserves the right to change or discontinue models.
